Bug: JSON.parse(undefined) reboots the ESP8266

[espruino-discuss]

Posted at 2019-08-25 by maze1980

I had similar code in onInit():

JSON.parse(undefined)

Instantly after save() my ESP8266 went into a reset loop.
Is it a specific ESP8266 bug, or is it a general bug?

[espruino-discuss]

Posted at 2019-08-25 by AkosLukacs

(argh, forum ate a longer response, so just a short answer now:)

Works on my machine :)

My machine now includes ESP8266, ESP32, nRF52. JSON.parse(undefined) doesn't cause a reboot.
Most likely some other code either in the init or in the "regular" part of your program that causes a reboot. Some other error, or stuck in an infinite loop waiting for something that never happens because init failed (and rebooted by watchdog).

Even tried this on an ESP8266 (with save to flash)

function onInit(){
  print('@onInit');
  //throw new Error('b00');
  JSON.parse(undefined);
}

Output:

 ____                 _
|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v01 (c) 2018 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:1024/1024, manuf 0xef chip 0x4016
>
Running onInit()...
@onInit
Uncaught SyntaxError: Expecting a valid value, got undefined
 at line 1 col 10
undefined
         ^
in function called from system

And works just fine.

---

Posted at 2019-08-25 by @allObjects

@maze1980, it is very difficult to respond to conversations with such titles and with no details / context of the code and even less of the hardware...

Main issue with most platforms - and especially non-Espruino boards - is that it matters what the setup is and happened before you issue save(), for example: is there level 0 code that creates things other than code objects... It is always good practice to have nothing set - such as pin modes - or activated - such as timeouts, intervals, connects, etc - except in onInit().

A tanking - rebooting -ESP866 has usually two root causes:

• power stability
• cycle hogs in the application code

---

Posted at 2019-08-25 by maze1980

I flashed the device with "espruino_2v04_esp8266_4mb_combined_4096.bin".
The first command I typed in after connecting is "JSON.parse(undefined)" (no Wifi/no other devices connected).
The ESP8266 is USB-powered, and this works fine with Wifi and a few Neopixels normally (when not using this code).

>    JSON.parse(undefined)
 ets Jan  8 2013,rst cause:2, boot mode:(3,7)
load 0x40100000, len 2408, room 16
tail 8
chksum 0xe5
load 0x3ffe8000, len 776, room 0
tail 8
chksum 0x84
load 0x3ffe8310, len 632, room 0
tail 8
chksum 0xd8
csum 0xd8
2nd boot version : 1.6
  SPI Speed      : 80MHz
  SPI Mode       : DIO
  SPI Flash Size & Map: 32Mbit(1024KB+1024KB)
jump to run user1 @ 1000
�ã�änì�{�ûo|ä�l�lld`��c��<�s��d�'à�'ãd`��ãrÛl�$þ
 ____                 _
|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v04 (c) 2019 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:1024/1024, manuf 0xc8 chip 0x4016
>process.memory();
={ free: 1575, usage: 25, total: 1600, history: 0,
  gc: 0, gctime: 1.901 }
>process.env;
={
  VERSION: "2v04",
  GIT_COMMIT: "3956264e",
  BOARD: "ESP8266_4MB",
  FLASH: 0, RAM: 81920,
  SERIAL: "a020a61c-4bc6",
  CONSOLE: "Serial1",
  MODULES: "Flash,Storage,hea" ... "r,crypto,neopixel",
  EXPTR: 1073643636 }
>console.log(process.env.MODULES);
Flash,Storage,heatshrink,net,dgram,http,NetworkJS,Wifi,ESP8266,TelnetServer,crypto,neopixel
=undefined
>require("ESP8266").getState();
={
  sdkVersion: "2.2.1(6ab97e9)",
  cpuFrequency: 160, freeHeap: 15464, maxCon: 10,
  flashMap: "4MB:1024/1024",
  flashKB: 4096,
  flashChip: "0xc8 0x4016"
 }
>require("Flash").getFree();
=[
  { addr: 2097152, length: 1048576 },
  { addr: 3145728, length: 262144 },
  { addr: 3407872, length: 262144 },
  { addr: 3670016, length: 262144 },
  { addr: 3932160, length: 241664 }
 ]
>require("Storage").getFree();
=16
>

---

Posted at 2019-08-25 by AkosLukacs

Ok, looks like the 2v04 "_4mb" build crashes.
Same ESP flashed with different builds:

  VERSION: "2v01",
  GIT_COMMIT: "748a4d3",
  BOARD: "ESP8266_4MB",

-> works

  VERSION: "2v03",
  GIT_COMMIT: "e77d74f6",
  BOARD: "ESP8266_4MB"

-> works

VERSION: "2v04",
  GIT_COMMIT: "3956264e",
  BOARD: "ESP8266_4MB"

-> crashes

  VERSION: "2v04",
  GIT_COMMIT: "3956264e",
  BOARD: "ESP8266_BOARD"

-> works

---

Posted at 2019-08-25 by @allObjects

Interesting... and even the board matters... (assuming the commit is for the built code..., which is the same for the latter two).

---

Posted at 2019-08-25 by @allObjects

I know that this conversation is in the 8266 realm, but - for curiosity - I just tested on a PICO, and that is what I get:

 ____                 _
|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v04 (c) 2019 G.Williams
Found PICO_R1_3, 2v04
>
Connected to /dev/cu.usbmodem14111
>JSON.parse()
Uncaught SyntaxError: Expecting a valid value, got undefined
 at line 1 col 10
undefined
         ^
> JSON.parse(undefined)
Uncaught SyntaxError: Expecting a valid value, got undefined
 at line 1 col 7
undefined
      ^
>JSON.parse("")
Uncaught SyntaxError: Expecting a valid value, got EOF
 at line 1 col 1
^
>JSON.parse("{}");
={  }
>

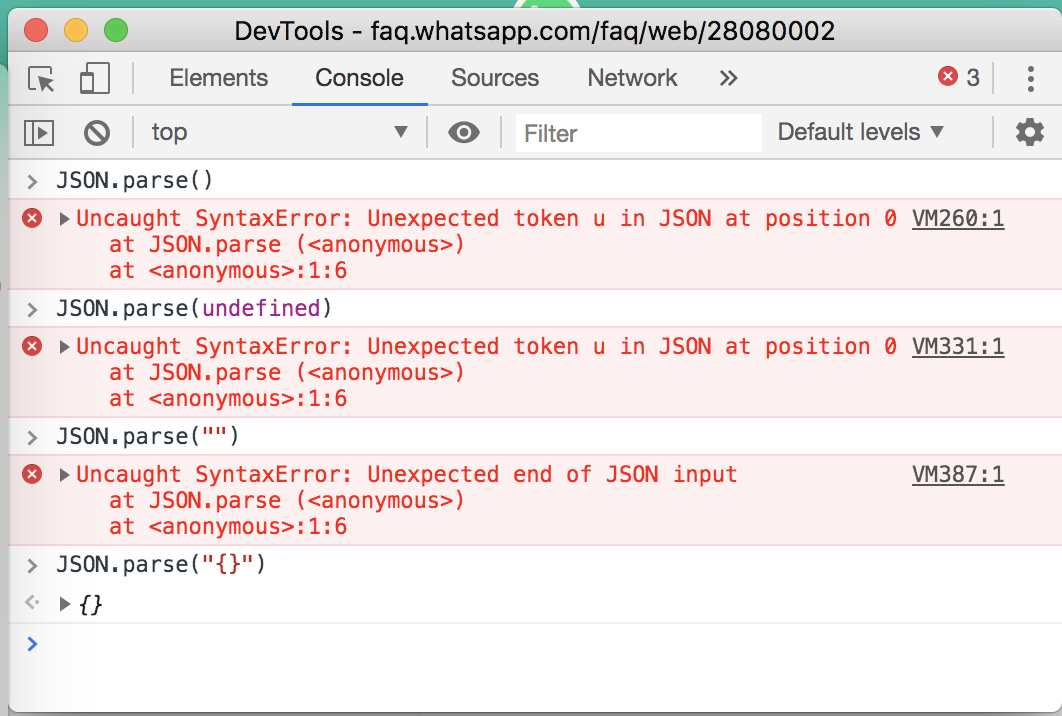

...comparable what the (Chrome) browser JS Engine throws at me: see attached screen shot (...but is for sure not a crash of the system / HW).

Workaround is asking if undefined before parsing... (try catch does not help)...

---

Attachments:

• JSON_parse_sth.png

---

Posted at 2019-08-26 by maze1980

I've now included a test for undefined in my code,it is fixed for me.
Since the source code is the same for all systems I wonder what's going on. Might be a job for a long winter nights to dig into it.

Another bug is this one (directly after erase and flash):

>require("Storage").getFree();
=16
>require("Storage").eraseAll();
=undefined
>require("Storage").getFree();
=196608

Do you have the same on the ESP8266 4MB build? It doesn't affect the JSON.parse.

---

Posted at 2019-08-27 by @gfwilliams

@MaBecker could this be related to the compile flags used in the 4MB ESP8266 build?

---

Posted at 2019-08-27 by @MaBecker

Just checked - Yes - reopened #1679 to fix it.

---

Posted at 2019-08-28 by @gfwilliams

Thanks! I've just applied that fix so cutting edge builds should now work ok
