NRF_setAdvertising

[espruino-discuss]

Posted at 2019-09-25 by user95229

gordon
Is there some Espruino example that sends Advertising of state (for example) of 4 analog inputs each 3 seconds ?
In meantime sleeps ?

[espruino-discuss]

Posted at 2019-09-25 by @gfwilliams

The easiest is probably just:

function update() {
  var data = [
    analogRead(D2)*255,
    analogRead(D3)*255,
    analogRead(D4)*255,
    analogRead(D5)*255,
  ];
  NRF.setAdvertising({},{
    manufacturer:0x0590,
    manufacturerData:data
  });
}

setInterval(update, 3000);

---

Posted at 2019-09-26 by user95229

Gordon

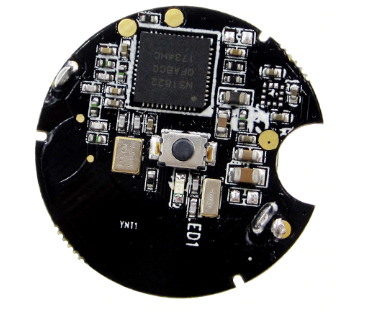

Thanks to help me! Today i compiled your ESPRUINO to NRF51822 (a chineses beacon) and run it. I can see with your WEB IDE the NRF51822 after scanning. Wheni try to connect say "CONNECTING" and nothing happens! Any tip ? Thanks!!!!!!!!

---

Posted at 2019-09-27 by AkosLukacs

Which board file you started with?
I tried a the Micro:bit firmware on a Xiaomi humidity sensor with nRF51822, and did work at first try.
What kind of beacon? Can it provide enough energy to the uC? Although a single coin cell should be enough, but still...

---

Posted at 2019-09-27 by user95229

Hummm, good tip to use the Micro:Bit firmware :)
I will compile with that! Did you compile it ?
I used this attached!

I had gave up to use the ESPRUINO and choose Nordic SDK C where i make work the NRF51802 and NRF51822.

But, now! I want to back to ESPRUINO!!!! Much better! I will test soon and thanks AkosLukacsPatreon

And thanks gordon!

---

Attachments:

• Sem título.png

---

Posted at 2019-09-28 by tcpipchip

Worked!!!!!!!!!!!!!!!!

Btw, is there any example to read the Battery value without create a SERVICE on ESPRUINO ? btw, i dont want to make a conenction to read the Battery, i want it during broadcasting...

---

Posted at 2019-09-28 by AkosLukacs

There is an official downloadable build for the Micro:Bit https://www.espruino.com/Download
I used that first with the 51802, and after that built my own with (removed the microbit specific code).
Here is the thread with more info: http://forum.espruino.com/conversations/333666/ and the board file: https://gist.github.com/AkosLukacs/d37aa8663943dbd976279fc4cfa7c785

---

Posted at 2019-09-28 by tcpipchip

WOW!
thank you so much

---

Posted at 2019-09-28 by Robin

Sat 2019.09.28

'is there any example to read the Battery value'

http://www.espruino.com/Reference#l_E_getBattery

Note: This is only available in Puck.js devices and Pixl.js boards

See link: 'How do I measure battery voltage on devices that don't have E.getBattery?'

https://www.espruino.com/Tips+and+Tricks
